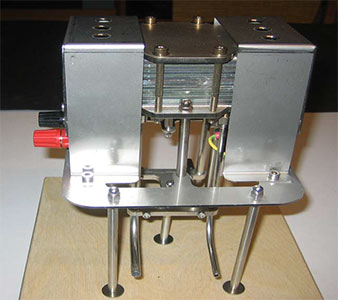

UBOCELL SOFC “Open-Air Demo Set”
For table-top “open air” demonstrations of SOFC technology. Internally heated stack. Operation temperature of 600°C reached in six minutes. Stack read hot soon after. Power from hydrogen and air. Output of 60 W at 12 VDC demonstrated by three shining lights and red-hot stack. Other users may be connected for convincing experiments. K-type thermocouple, UBOCELL Control Box and lamp set.
Price complete set
115 VAC: CHF 10,900 (≈ EUR 10,100 ≈ USD 12,000)
220 VAC: CHF 11,500 (≈ EUR 10,700 ≈ USD 12,600)
Technical Data
| Dimensions L x W x H | 200 mm x 200 mm x 210 mm (7.87" x 7.87" x 8.27") |
| Number of cells: | 16 |
| Performance (700°C): | OCV ≈ 16 V, P = 80 W at 12 V for H2 and air at about 750°C |
| Cells | 0.4 mm anode-supported, anodes reduced before stack assembly |
| Cell material: | Anode. Ni-Cermet, electrolyte: ZrO, cathode: LSM |
| Bipolar and end plates: | 1 mm Crofer 22, with etched flow fields |
| TC center plate: | 4 mm Crofer 22 for placement of one thermocouple near stack center |
| Compression plates: | 4 mm stainless steel: 316L (1.4305) |
| Electrical insulation: | 1 mm Al2O3 |
| H2 and air supplies: | Front of bottom compression plate. |
| Exhausts: | Rear of bottom compression plate. |
| Heating power: | Mounted C14 plug |
| Start-up time: | 6 minutes to 600°C |
| Delivery time: | Four weeks after placement of order |
